Query-Based Asymmetric Modeling with Decoupled Input–Output Rates for Speech Restoration

Abstract

Speech restoration in real-world conditions is challenging due to compounded distortions and mismatches between input and desired output rates. Most existing systems assume a fixed and shared input–output rate, relying on external resampling that incurs redundant computation and limits generality. We address this setting by formulating speech restoration under decoupled input–output rates, and propose TF-Restormer, a query-based asymmetric modeling framework. The encoder concentrates analysis on the observed input bandwidth using a time–frequency dual-path architecture, while a lightweight decoder reconstructs missing spectral content via frequency extension queries. This design enables a single model to operate consistently across arbitrary input–output rate pairs without redundant resampling. Experiments across diverse sampling rates, degradations, and operating modes show that TF-Restormer maintains stable restoration behavior and balanced perceptual quality, including in real-time streaming scenarios.

System Architecture

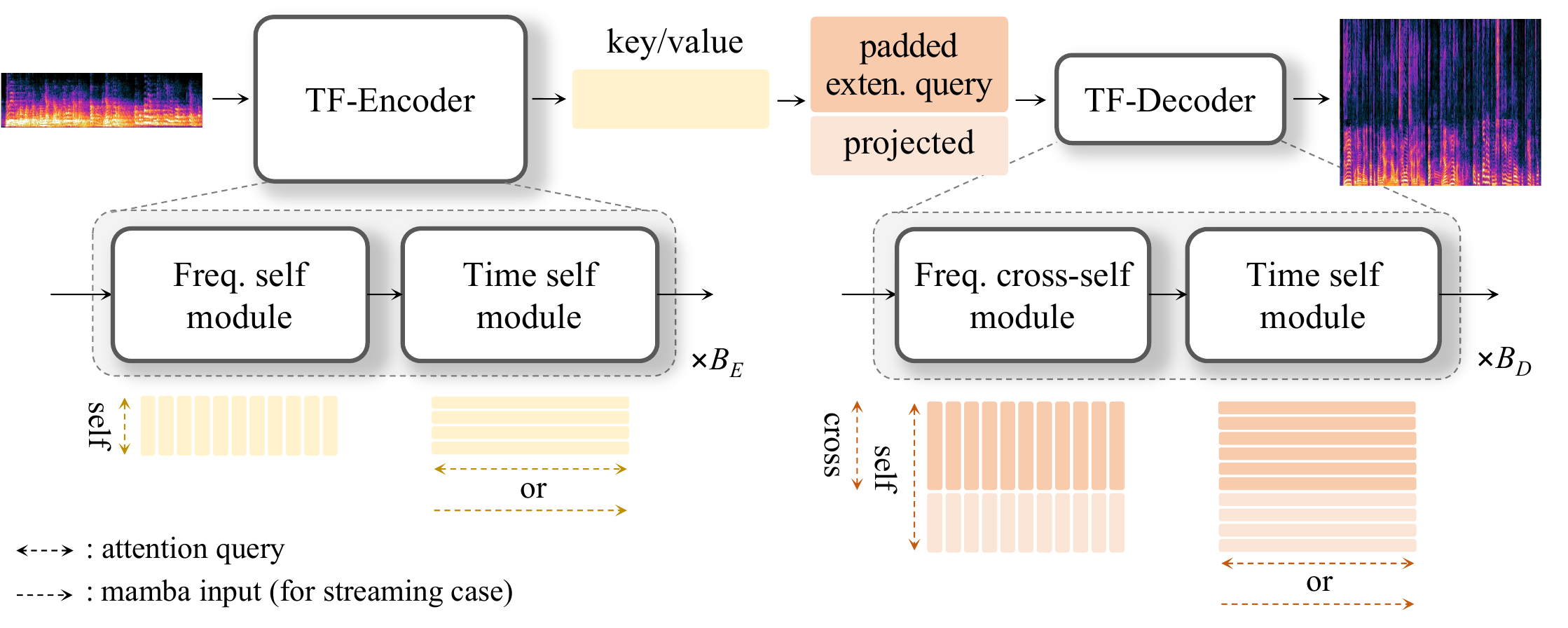

Asymmetric encoder-decoder framework: Heavy processing on input bandwidth (encoder), lightweight frequency extension (decoder)

Model Components

TF-Encoder (Heavy Processing)

Input: Complex STFT $\mathbf{X} \in \mathbb{R}^{F_E \times T \times 2}$
Processing: Conv2D(3×3) → LayerNorm → Freq PE
Architecture: $B_E = 6$ alternating TF blocks
Channels: $C_E = 128$ feature dimensions
Purpose: Analyze degraded input, extract clean representations

TF-Decoder (Lightweight Extension)

Architecture: $B_D = 3$ blocks (3× fewer than encoder)
Channels: $C_D = 64$ feature dimensions
Extension Query: $\mathbf{q}_{\text{ext}} \in \mathbb{R}^{(F_D - F_E) \times T \times C_D}$
Output: Complex STFT $\mathbf{Y} \in \mathbb{R}^{F_D \times T \times 2}$
Purpose: Reconstruct missing high frequencies

Time-Frequency Dual-Path Processing

Time Module

Macaron-style: ConvFFN + MHSA + ConvFFN
Multi-head attention: $H = 4$ heads
Processes $F$ sequences of length $T$
Rotary position embeddings (RoPE)
Streaming variant: Mamba ($d_{\text{state}} = 16$)

Frequency Module

Macaron-style: ConvFFN + MHSA/MHCA + ConvFFN
Linformer projection: $\mathbf{A}_h \in \mathbb{R}^{F_{\text{max}} \times F_{\text{proj}}}$, $F_{\text{proj}} = 512$
Processes $T$ sequences of length $F$
Cross-attention in decoder (encoder K/V)
ConvFFN: $K = 7$, SwiGLU activation

Key Innovations

Extension Queries

Learnable frequency patterns $\mathbf{q}_{\text{ext}}$ shared across frames. Enables bandwidth extension from $F_E$ to $F_D$ without resampling.

SFI-STFT Discriminator

5 multi-scale discriminators {20, 40, 60, 80, 100}ms. Enables single-model training across all sampling rates.

Scaled Log-Spectral Loss

Loss: $$\mathcal{L}_s = w_{tf} \cdot \log\left(1 + \frac{|Y_{c,tf} - S_{c,tf}|}{w_{tf}}\right)$$
Emphasizes well-predicted regions, suppresses large deviations.
